What is a spatial display?

A spatial display is a display system whose output is meant to be perceived as occupying depth or volume, rather than being read only as an image attached to a flat panel. It may create that result by directing different views toward different eye positions, reconstructing aspects of a light field, forming an aerial image, placing imagery behind an optical combiner, illuminating real points within a volume or reconstructing a wavefront holographically.

The term therefore describes an experiential category, not one optical recipe. Two products can both be called spatial displays while using very different display engines, viewing zones and content pipelines.

What makes an image feel spatial?

Human depth perception is assembled from several cues. Binocular disparity gives each eye a slightly different view. Motion parallax changes the view as the observer moves. Occlusion reveals which surface sits in front of another. Perspective, relative scale, shading and focus add further evidence. A convincing spatial display does not need to reproduce every cue perfectly, but it must keep the cues it does provide mutually coherent.

This is why a spectacular still frame can fail in person. If the viewpoint does not respond as expected, if scale changes without reason or if the subject appears detached from the display's physical interior, the visual system notices the contradiction.

Google's Project Starline research is instructive because it treated copresence as a complete audiovisual problem: physical layout, lighting, capture, head tracking, multiview rendering, compression, spatial audio and a lenticular display were designed together. The lesson is broader than telepresence: spatial display quality is a systems property.

What are the main spatial-display families?

The boundaries can overlap. A commercial system may combine a conventional panel, lenticular optics, tracking, AI-based view synthesis and a physical chamber. The responsible way to describe it is to name the experience category first and the verified optical architecture second.

Is every spatial display a hologram?

No. Holography has a specific technical meaning: recording or computing light-wave information and reconstructing the wavefront through diffraction and interference. Many experiences marketed as holograms use reflected images, transparent media, multiview panels, projection or stage illusions instead.

Calling all of them holograms makes buying decisions harder because it hides the properties that matter: viewing zone, parallax, focal behavior, brightness, physical depth, content format, interaction and operating environment. Our detailed spatial display versus hologram guide provides a practical taxonomy.

How does a spatial display system work?

1. 01
   SourceA live camera, volumetric capture, 3D scene, generated subject, rendered object or prepared video supplies the content.
2. 02
   Spatial representationGeometry, depth, masks, multiple camera views or a light-field representation describes how the subject should change with viewpoint.
3. 03
   View synthesisThe renderer produces the perspective or set of views required by the optical system and current observer position.
4. 04
   Optical encodingPanels, films, gratings, lenses, combiners or modulators direct the output into the intended viewing field.
5. 05
   CalibrationGeometry, color, brightness, scale, tracking and physical alignment are fitted to the actual device and room.
6. 06
   RuntimeSoftware launches, monitors, switches, measures and safely recovers the experience.

Stanford's foundational light-field work described views as slices through a four-dimensional representation of light flow. Modern systems may add depth estimation, neural view synthesis and real-time tracking, but the core problem remains: produce the right rays or views for the observer and optical endpoint.

What content works best on a spatial display?

The best content makes the display's spatial promise easy to read. A clearly bounded person, product, mechanism or character usually works better than a conventional widescreen commercial transplanted into a new device. The subject needs intentional scale, a stable relationship to the focal region and enough visual separation from the background to remain legible.

Text and interface elements require particular restraint. Sony's Spatial Reality Display guidance notes that excessive parallax can make two-dimensional interface elements flicker or appear farther forward than intended. The safest approach is to keep critical text near the display plane, use short labels and separate information design from depth spectacle.

See the full spatial-display content guide for composition, motion, loop and validation rules.

What are the real limitations?

Every spatial display has a finite optical budget. In a multiview system, more views can compete with spatial resolution, frame rate and brightness. In reflected or aerial systems, ambient light and enclosure geometry affect contrast. Tracking can expand the effective viewing experience for one observer while creating different compromises for a group. Capture quality, latency, compression and calibration can undermine a good optical design.

There is also a content and operational budget. A display installed in a store, museum or clinic must start predictably, recover from faults, fit the room, protect rights and privacy, and give staff a simple way to operate it. A spatial effect that survives only under demo conditions is not yet a product experience.

Where does a spatial display create value?

Spatial display is most valuable when the subject itself matters more than the message around it. Remote expertise benefits when a specialist's gaze, gesture and scale help a local person act. Retail benefits when form, material or mechanism is difficult to understand in a photograph. Education benefits when a class needs shared attention around a model. Physical AI benefits when an intelligent system needs a visible role, expression and accountable point of interaction.

If a flat screen communicates the same information just as well, use the flat screen. Spatial display should earn its place through better understanding, access, trust, attention or action—not novelty alone.

How should a buyer evaluate a spatial display?

• Viewing: How many people can see the intended effect, from what angles and distances?
• Depth: Which cues are reproduced, and where is the comfortable usable depth range?
• Image quality: What happens to resolution, crosstalk, brightness, color and detail off-axis?
• Content: Does it accept live people, 3D assets, rendered video or generated media? What preparation is required?
• Environment: How sensitive is the result to ambient light, background, reflections and physical placement?
• Operation: Can staff schedule, launch, monitor and recover it without specialist intervention?
• Evidence: Has the exact configuration been recorded and evaluated in the target environment?

Use our use-case selection framework before comparing hardware. The right question is not “Which display looks most futuristic?” It is “Which spatial moment is valuable enough to operate repeatedly?”

How does Reality Relay define the category?

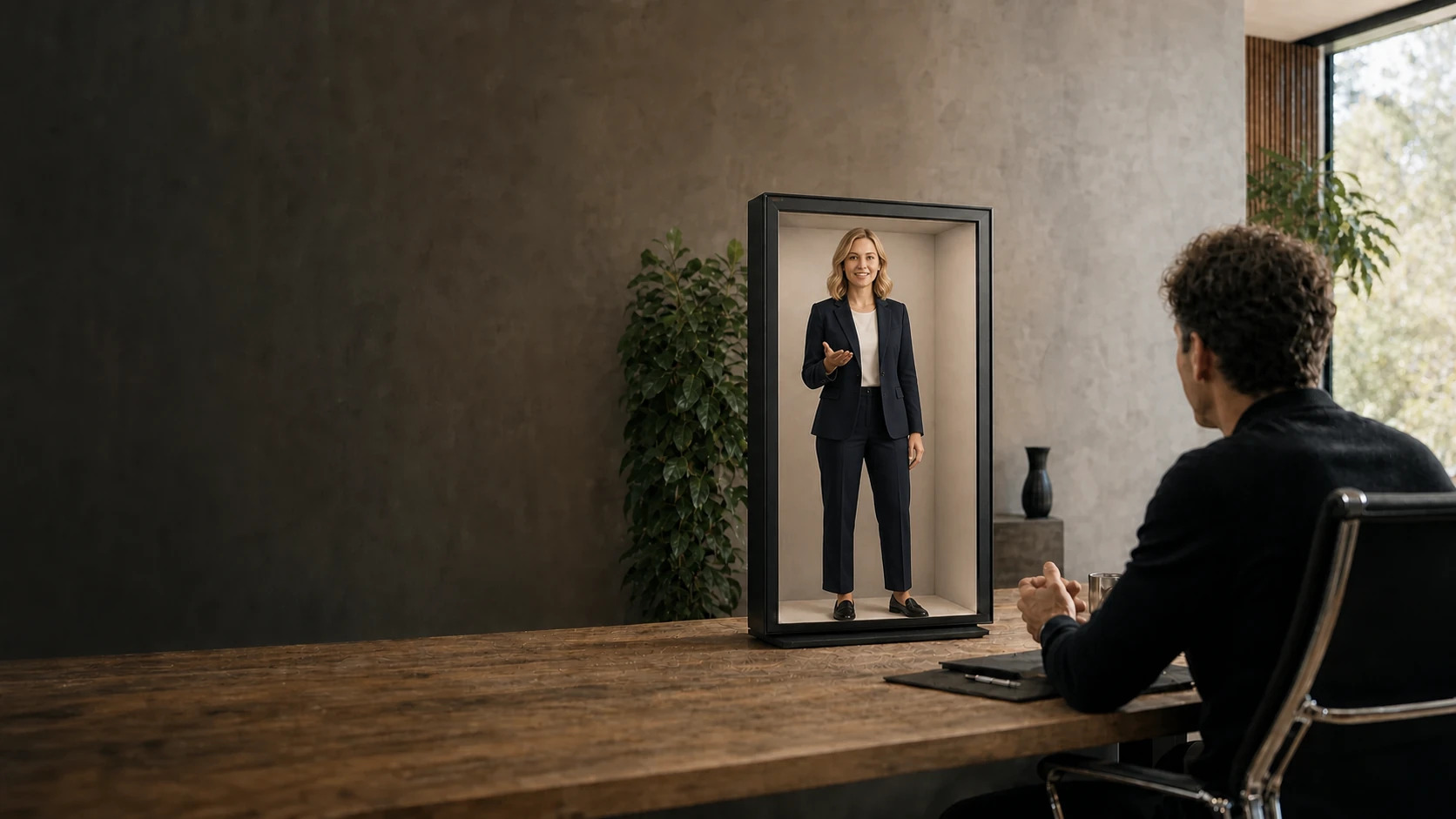

Reality Relay treats spatial display as a physical endpoint for presence. The endpoint may use different optical architectures, but every experience is composed around a bounded space in which a person, object or intelligent character appears to arrive. Reality Relay Platform supplies the scene, intelligence, calibration, runtime and network layer around that endpoint.

This distinction matters. Optics make an image possible. A presence system makes the experience repeatable, governable and useful.
